A Rose by any other name… wait.. is it still the same Rose?
The title and subject of this discussion is the contextual nature of business keys, keys are the immutable value that represents a thing, entity, interest or business object uniquely and is used by a business to identify that thing forever. However, a key by itself is meaningless…
What information can we derive from these key values? Nothing really (smart-keys excepted).
Equally, descriptive data without an immutable key is of little value to the business and its business processes. Being able to track a business entity through its life cycle in the business is a requirement of business systems.

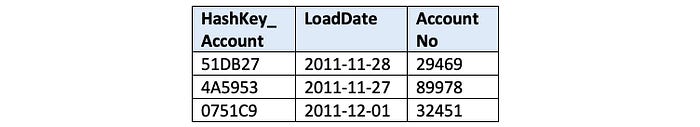

We can agree that in describing a customer we need to identify it, If we were to load a data vault hub table with unique keys we see that the business key in fact is just a value with no context. Only when queried with a satellite table do we learn the historical descriptive change data about that business key, and when queried with a link table we determine how the entity is related to other entities.

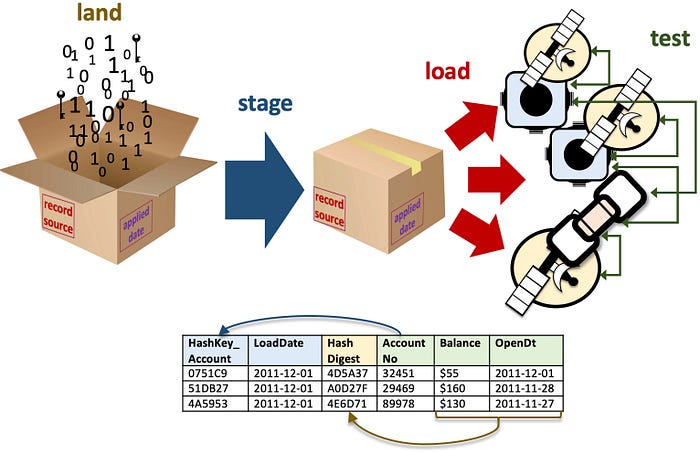

A source system (3rd party or built internally) exists to automate and manage the data that represents the business processes and events the organization is invested in. Simplified, these could be to track customer details (name, date of birth… ), addresses, contracts, accounts, properties, contact details, orders, products, the things that are core to your business. Data packaged as either a snapshot or a delta (only changes) is landed (push or pull) and staged with hard rules applied (basic column clean-up & time zone alignment) and data vault metadata tags (record source, load date timestamp, applied date timestamp, surrogate hash keys and record digest) and loaded to their respective data vault artefacts (hubs, links and satellites).

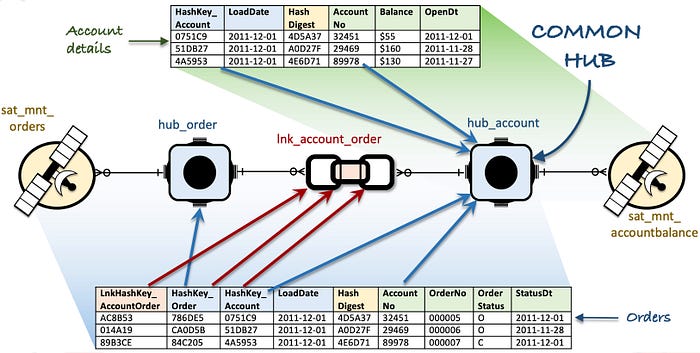

A single source platform will have multiple source files to pull/push into a landing zone, each focussing on a unit of work that will load to hubs, links and satellites and in some cases data will be loaded to common hub tables. Let’s expand our business model to include orders…
The business key is treated and loaded to the hub table (unique list of business entities) with a hash value representing those business entities uniquely and the descriptive content loaded to adjacent satellite tables and relationships loaded to adjacent link tables. Although the common hub has multiple sources the content is still a unique list of business keys…
Business key collisions

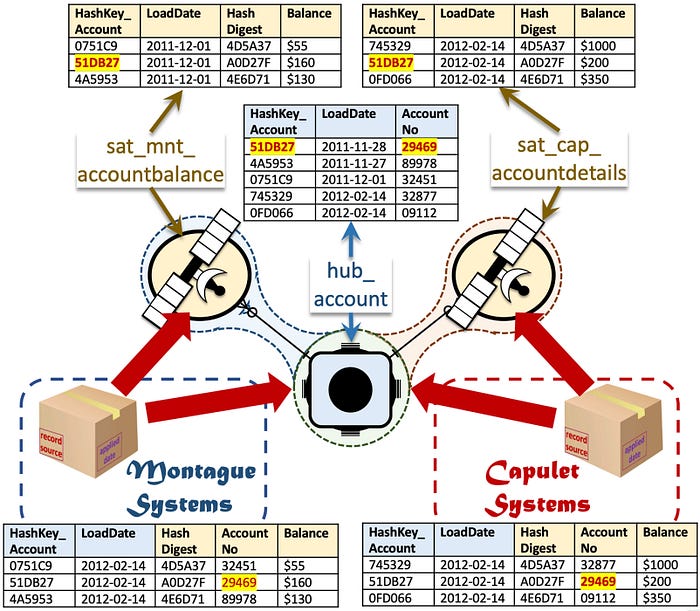

Now let’s consider another data source added to our business, for example in an acquisition a fictitious corporation called Montague Systems purchases Capulet Corp. As it happens Capulet Corp tracks account numbers and orders too! And here is the situation, account numbers are in the format nnnnn and they have tracked their own business entities according to their own business! We need to integrate the new source into data vault but we know with certainty that the same business key that appears in each source system will not be the same business entity!
Account number ‘29469’ has a balance of $160 in Montague Systems and a balance of $200 in Capulet Corp but they are not the same business entities!

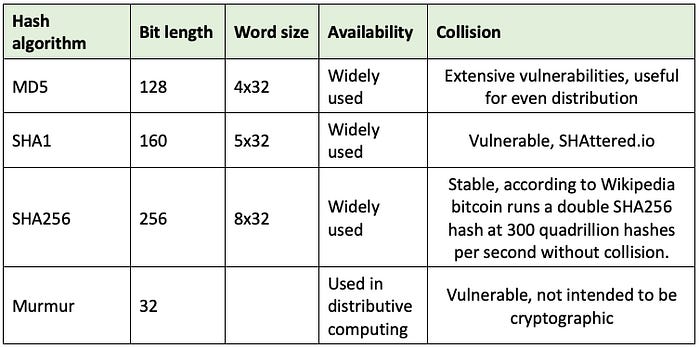

How is this resolved? The very nature of hashing is that if you change just a single byte character in the value digest then the generated hash value changes completely but still maintains the same digest value length.
Because we have various data sources and applications whose business keys are loaded to a common hub table, these natural keys if representing the same business entity naturally integrate in the hub. If a source loading to the common hub has the same key but it is in fact a different business entity we then simply add a prefix to that business key, in a separate column, and we call it a business key collision code (or BKCC), only applied if there is the possibility of a collision between having the same business keys creating the same hash key within the same hub table even though they are different business entities.
Once applied the business key collision code is used along with the business key(s) to produce a consistent surrogate hash key value, that is one of the characteristics we rely on in data vault, the same values using the same hashing algorithm and business key treatments will consistently produce the same surrogate hash key value which leads to passive integration of the business process data into the data vault model.

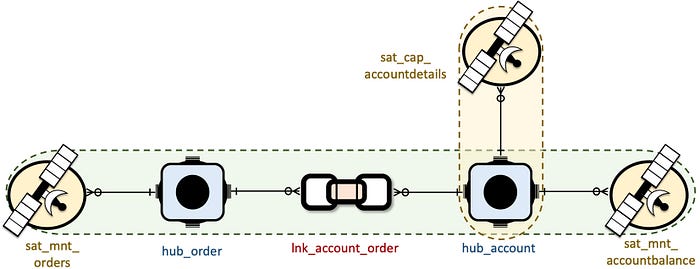

Let’s apply this to the data vault model, remember only use the business key collision when there could be a business key collision. In some environments natural keys that represent the same business entities are shared across systems and thus does not need a collision code.
How are the new hash keys generated? SHA1(BKCC, ‘||’, <business-key(s)>) (apply delimiter between columns that make up a composite business key)
As you can see it is now not possible to join Capulet Corp-sourced account details to account details sourced from Montague Systems because the business key collision code is included in the hash key generation.
Now that the surrogate hash keys have been generated; when you query the data vault you will only return the records in the hub and its satellite table for the content you are after when utilizing the EQUI-JOIN/INNER-JOIN. Equally when utilizing inner joins between a hub and its links, a link and its link-satellites the content returned in the query will only be applicable to the that business entity.
Therefore when we describe a business entity you will return only the descriptive content and actual relationships applicable to the business entities you are querying using EQUI-JOINs. Joining to non-applicable satellite tables to a business entity will not return any records, and that is ideal by design and why a single data vault model will integrate multiple business processes and data sources…
… in Data Vault… “A Rose is a Rose is a Rose” — Gertrude Stein
